When Sewer Replacement Is the Only Safe Path

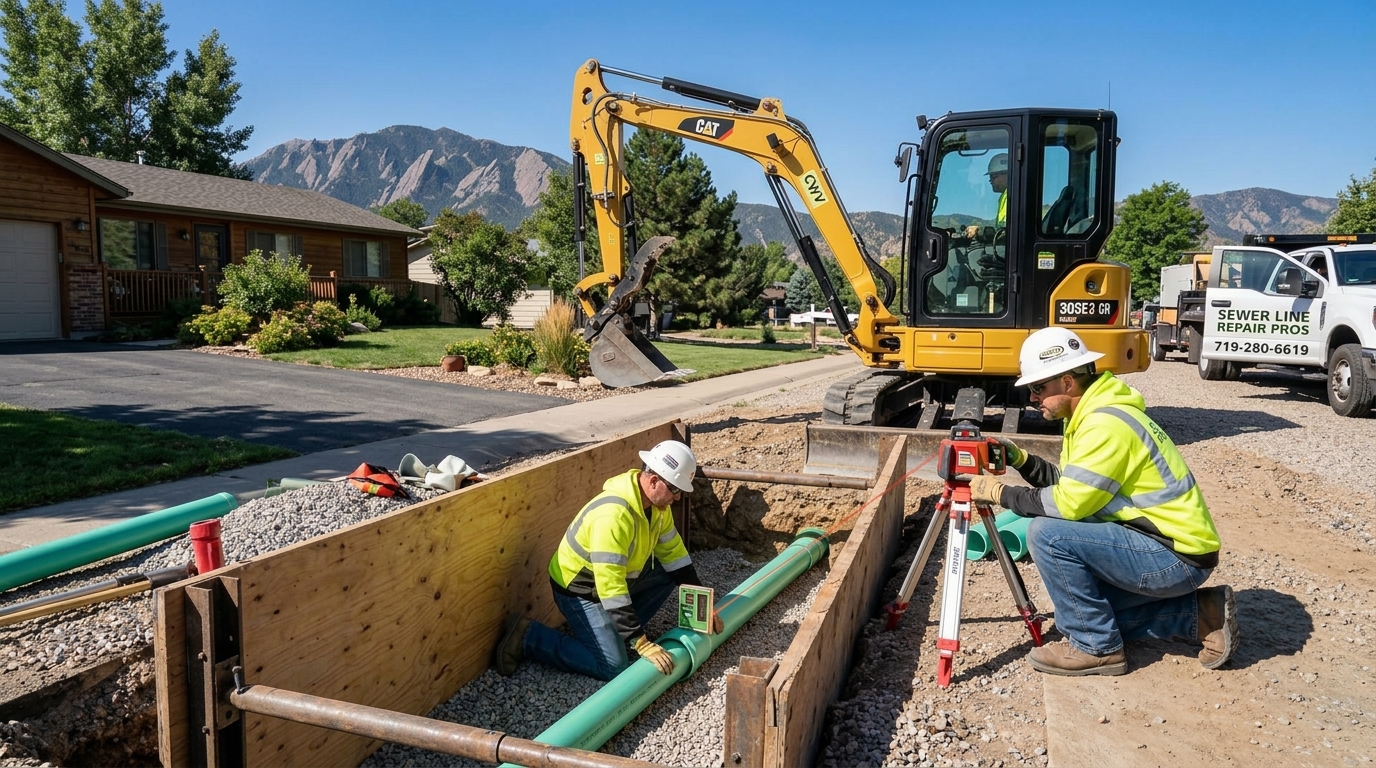

Civil utility crew using laser grading and excavator to lay SDR-35 PVC sewer pipe in Colorado — **Civil Utility Installation:** Heavy excavation crew utilizing laser-guided slope verification and aggregate bedding for structural SDR-35 PVC sewer lateral replacement.

While we always evaluate non-invasive trenchless pipe lining first, some underground failures are too severe for no-dig restoration. When a sewer lateral has physically collapsed, crushed inward, or suffered catastrophic slope failure, lining is impossible because there is no intact pipe geometry to support a sleeve.

As an authoritative sewer repair pueblo west co specialist, Sewer Line Repair Pros delivers full-scale excavation and line replacement executed with civil engineering precision. We don't just dig a ditch and drop in plastic pipe—we analyze your soil strata, calculate laser-verified fall, install protective aggregate bedding, and build a wastewater conduit engineered to survive Pueblo County's aggressive ground movement.

The 4 Primary Reasons Laterals Require Full Excavation

Total Structural Collapse or Crushed Sections: When heavy surface loads (such as concrete delivery trucks, RV parking, or soil subsidence) crush brittle clay pipe, the conduit breaks inward. Dirt, shale gravel, and clay fill the void, creating an impassable barrier that cannot be cleared or lined.

Severe Back-Pitched Pipe Bellies: Proper plumbing code requires a downward gradient of at least 1/4 inch per foot. When unstable subsoil settles beneath a lateral, the pipe bows downward, creating a low spot that constantly stands full of murky water. Because lining adheres to the pipe contour, it cannot correct gravity pitch. Excavation and stone bedding is the only way to re-establish true laser-straight fall.

Complete Cast Iron Channel Invert Rot: If an old cast iron sewer lateral has completely rotted out along its bottom invert, wastewater is flowing through a raw dirt channel beneath the pipe. Installing a liner inside a pipe with missing bottom sections causes epoxy to spill into the subgrade. Full pipe replacement is required.

Multiple Severe Radial Offsets: When bentonite clay swelling has shifted four or five joints in opposite directions, creating a stair-stepped zigzag profile, robotic cleaning heads cannot traverse the line. Excavation allows our crew to straighten the entire alignment.

Engineered to Resist Pueblo County’s Expansive Bentonite Heave

The most common reason newly replaced sewer lines fail in Pueblo County is poor trench bedding. Many low-bid contractors dig a trench, throw PVC pipe onto the raw dirt floor, and push native clay clods directly back into the ditch.

When that native bentonite clay gets wet from winter snowmelt or lawn irrigation, it swells with hydraulic force, lifting the pipe and reversing its pitch. When it dries in July, the soil contracts, leaving the pipe unsupported so it sags into a permanent belly.

At Sewer Line Repair Pros, we follow strict civil engineering bedding protocols:

Over-Excavation: We dig the trench 6 inches deeper than the final pipe invert elevation.
Washed Stone Cradle: We install a 6-inch bed of 3/4-inch fractured, washed angular rock. Angular stone interlocks, providing a stable foundation that does not compact or shift when wet.
Laser-Guided Alignment: We set every section of pipe using digital transit lasers to guarantee precise 1/4" per foot slope to the main tap.
Rock Haunching & Shading: We encase the sides and crown of the pipe in aggregate before backfilling with native soil in compacted 12-inch lifts.

The Replacement Execution Workflow

Diagnostic Verification & Marking: We confirm failure points using our sewer camera inspection and mark the line using electronic radio sondes.
Colorado 811 Locates & District Permits: We contact Colorado 811 to mark underground electrical, gas, telecom, and water mains. We secure all required excavation and street cut permits through the Pueblo West Metropolitan District (PWMD).
Surgical Excavation & Safety Shoring: Our mini-excavator operators dig precisely along the marked utility corridor. For trenches exceeding 5 feet in depth, we install certified aluminum trench shoring boxes to protect technicians.
Old Pipe Demolition & Removal: The damaged clay, cast iron, or crushed plastic pipe is extracted from the trench and hauled off-site for proper recycling or disposal.
Installation of Heavy-Duty SDR-35 PVC: We lay thick-walled PVC with elastomeric gasket joints that flex with natural thermal changes without breaking seal. We install dual two-way cleanout risers at the foundation for easy future maintenance.
Municipal Inspection & Pressure Testing: The Pueblo West Metro District plumbing inspector inspects the open trench, verifies bedding and grade, and witnesses an air or static water head pressure test.
Compacted Backfill & Surface Grade Restoration: Once approved, we backfill the trench in compacted layers using pneumatic tampers to prevent future ground settlement, grading the surface smoothly.

How Much Does Sewer Line Replacement Cost in Pueblo West?

Sewer line replacement costs depend on linear distance, burial depth, and what sits directly on top of the pipe run. Here is a realistic overview of costs in Pueblo County:

Job Scope	Typical Cost Range	Primary Cost Factors
Spot Section Replacement (10–20 ft)	$2,500 – $4,500	Excavating a localized collapse in lawn or dirt area, installing new SDR-35 segment, dual Fernco couplings.
Full Yard Lateral (Foundation to Property Line)	$5,000 – $9,000	50 to 100 ft run, depth 4–7 ft, stone cradle bedding, dual cleanouts, permit & inspection fees.
Full Street Cut to Municipal Main Tap	$9,000 – $14,500+	Deep trenching (8–10 ft), asphalt cutting on public road, traffic control, PWMD tap fees, certified road patch.

Excavation & Replacement Across Southern Colorado:

Frequently Asked Questions

When is complete sewer line replacement necessary instead of trenchless lining?

Complete excavation and replacement is required when a sewer pipe has suffered a full physical collapse, has crushed or missing pipe walls, or possesses a significant negative-pitch "belly" where standing water creates chronic backups. Trenchless lining requires an intact host pipe; when that structure is gone, open-cut replacement is the only engineered permanent solution.

What kind of pipe is installed during a sewer replacement in Pueblo West?

We install heavy-gauge Schedule 40 or gasketed SDR-35 PVC pipe designed specifically for deep municipal and residential burial. Plastic pipe is completely impervious to rust, smooth-walled for maximum hydraulic transit, and fused with root-proof rubber ring gasket hubs.

How deep are sewer lines buried in Pueblo West, Colorado?

In Pueblo West, residential sewer laterals typically exit the foundation between 3 and 5 feet deep and slope downward to meet the Pueblo West Metropolitan District sewer main at depths between 6 and 10 feet under the street or easement.

Do you handle city permits and Colorado 811 utility markings?

Yes. We manage the entire permitting workflow, including submitting Colorado 811 utility locate tickets, securing Pueblo West Metro District excavation permits, arranging right-of-way street cut bonds, and coordinating final municipal inspector sign-offs.

How long does a complete sewer lateral replacement take?

A standard residential sewer replacement in Pueblo West takes between 2 and 4 working days from initial excavation to backfill. We ensure temporary wastewater bypass or service connection at the end of each working day so you are never left without working facilities overnight.
